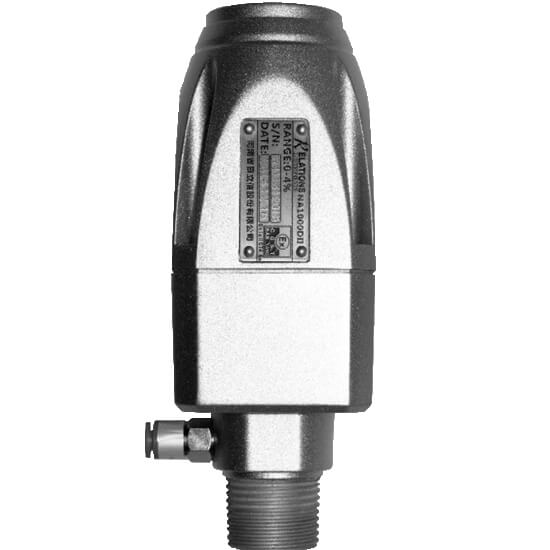

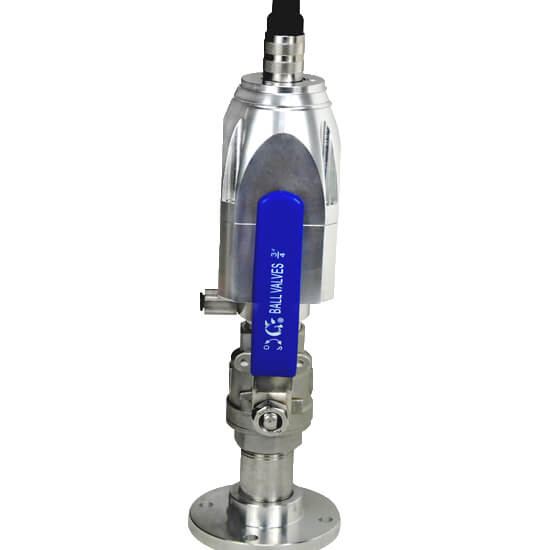

NA1000D II Hydrogen Monitoring Transmitter is an intrinsically safe explosion-proof type on-line hydrogen leak monitoring product specially developed by Henan Relations Joint Stock Co., Ltd. for hydrogen-cooled generator of the power station.
This product is a standard 4 – 20mA transmitter of two-wire system, which transforms hydrogen content into current signal and output it to the dedicated control device. The detecting unit is a smart sensor module (RDS-H2) integrating complete calibration information, which is convenient for maintenance and replacement. The product housing is processed and made by die casting aluminum alloys, with beautiful appearance and firm structure, which can adapt to most of the bad environment.
| Performance | |
| Gas detected | Hydrogen (H2) |
| Detection principle | Electrochemistry |
| Sampling method | Natural diffusion |
| Measurement scope | 0 – 4%（0 – 100%LEL） |
| Accuracy | ±2%F.S. |
| Repeatability | 2% |
| Response time | T90＜60s |
| Electrical characteristics | |
| Power supply | 24±3VDC |
| Output signal | Two-wire system 4-20mA |
| Structural characteristics | |
| Connecting thread | ZG3/4″ |
| Weight | 0.49Kg |
| Certification | |
| Explosionproof certification | ExiaIICT4 Ga |
| Electrical service environment | |
| Protection level | IP65 |
| Temperature range | -20℃ – 50℃ |
| Humidity range | 10 – 95%RH (without condensation) |
| Range of pressure | 86 -106KPa |
